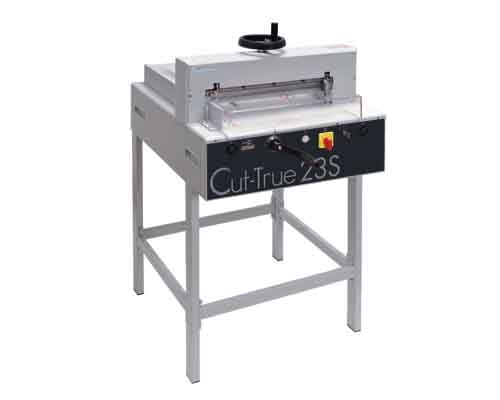

Formax Cut-True 23S Semi Auto Guillotine Cutter

Formax Cut-True 23S Semi Auto Guillotine Cutter
New

Formax Cut-True 23S Semi Auto Guillotine Cutter

Price: $3,824.00

Brand: Formax

SKU: Cut-True 23S

Formax Cut-True 23S Semi Auto Electric Cutter


PRODUCT DESCRIPTION:

The Formax Cut-True 23S Semi-Automatic Electric Cutter offers precision cutting for paper stacks up to 16.9” wide. This semi-automatic cutter requires very little effort, thanks to its electronically-controlled two-button operation. Simply load a stack of paper, up to 1.77” high, secure with the geared clamp, and press the buttons to engage the hardened-steel Guillotine blade.

Accurate cutting is easy with its spindle-guided back gauge with LED digital display and calibrated scales. Using these and the LED Laser Line, operators can make fine adjustments, and see exactly where the blade will cut.

The Formax 23S doesn’t sacrifice safety for accuracy. In fact, it features an electronically-controlled front safety cover, transparent rear cover, safety lock with key, blade lock, external blade depth adjustment, easy blade change access from the front of the cutter, and a wooden paper push for safe alignment. The rugged metal stand is included, providing a stable work surface, as well as feet for tabletop use.

The Formax Cut-True 23S is ideal for transforming brochures, invitations and more, with crisp, accurate cuts, and makes a welcome addition to print shops and in-plant finishing operations.

CLICK HERE FOR BROCHURE


PRODUCT FEATURES:

  • Cuts stacks up to 1.75” high x 16.9” wide
  • Semi-automatic
  • LED back gauge display
  • LED cutting line
  • Electronically controlled safety cover
  • High-quality hardened steel blade
  • Main switch and safety lock with key
  • Transparent rear safety guard
  • Geared clamping system
  • Automatic blade return
  • Calibrated scale for fine adjustments
  • Common paper sizes clearly marked
  • Adjustable blade guides
  • Wooden paper push for safe alignment
  • Blade change safety tool included
  • All metal stand and tabletop feet included

PRODUCT SPECIFICATIONS:

Cutting ActionDual-button electric
Maximum Cutting Width16.9"
Maximum Paper Stack Height1.75"
Cutting Length Behind Blade17"
Table Size in Front of Blade8.25"
Narrow Cut1.89"
Table Size24.6” W x 27.5” D
LED Cutting LineYes
Clamp StyleSpindle-guided clamping wheel
Back Gauge AdjustmentManual crank
Back Gauge ReadingDigital readout, in both standard and metric
Blade Change Safety ToolBlade Change Safety Tool
Dimensions46.75”H x 24.75” W x 33” D
Weight198.6 lbs
Power Supply110V
Safety CertificationsCE Approved



Specifications for Formax Cut-True 23S Semi Auto Guillotine Cutter
Cutting Width:
Cutting Height:
Narrow Cut:
Cutting Length Behind Blade:
Cutting Length Front of Blade:
Clamp:
Manual or Electric:
Stand:
