Digital Creasing and Numbering Machine

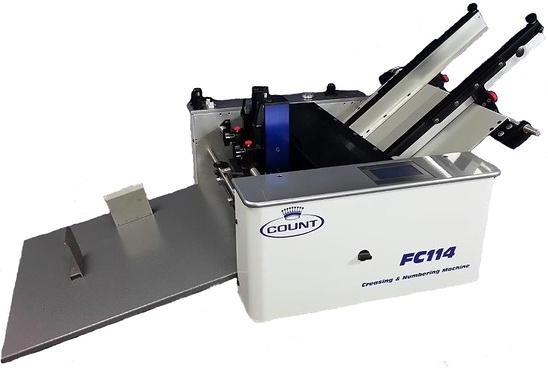

The Count FC114 Digital Creasing and Numbering Machine combines the technology of the EZ Creaser / iCrease Excel units and our Number pro machines into one great space saving machine.The accurate rotary actuated creasing comes with 2 width creasing bars for a variety of stock thicknesses. It will crease up to 12 times per sheet and number up to 24 times per sheet and has the ability to do linear perforating, micro-perf and rotary scoring.

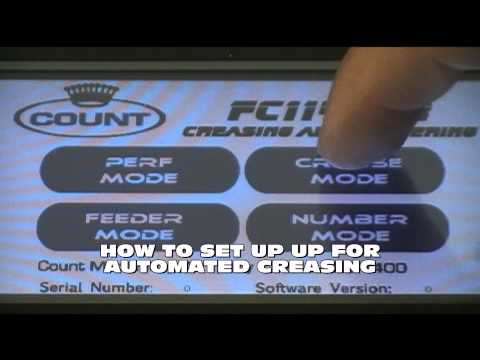

• New modern design with state of the art touch screen technology
• Increased speed and efficiency in both creasing and perforating
• Job memory for storing complex or reoccurring jobs
• 8 pre-set jobs for quick set up on the most common projects
• Automatic Perfect bind set up
• 12 custom crease locations available on each sheet
• Comes with both standard and wide crease dies
• Automatic setups with the touch of a button
• Automatic top-of-pile non marking friction feed
• Accurate Rotary Actuated Impact Creasing
• Dedicated feed mode which allows you to set sheet spacing
• Easy to set feed rails for quick set up and square feeding

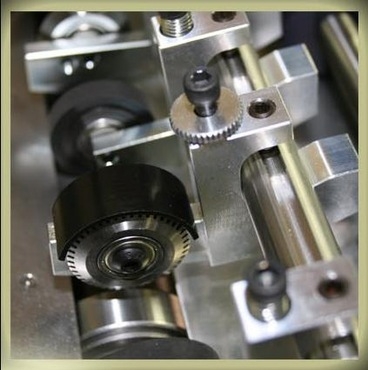

• Linear Perf/Score capabilities, including micro and laser perf
• Micro-Lateral adjustment for fine tuning perforation locations
• Perf blades available for 5 TPI, 9 TPI, 12 TPI and 96 TPI & 185 TPI micro perf (sold separately)
• Optional burr flattener is available for creating and extra flat perf
• Optional narrow margin perf assembly is available for perforating close to the edge of the sheet
• All measurements in millimeters to avoid conversions and decimal points
• Fine tune adjustment for crease locations to a fraction of a millimeter
• New auto adjusting gripper wheels provide consistent grip and decrease set up time
• Batch, Sheet and Total Counters
• Automated Distance Recognition
• Ability to add Inline Folder
• Ability to add Inline transport to the Countcoat UV Coater
• Simple programming allows you to number, perforate, or crease individually.
• Gothic (7) wheel reverse numbering heads offer many repeat sequences: 0,1,2,3,6 and 3 drop zero's
• Each numbering head can be programmed individually for multiple numbering
• Numbers virtually anywhere on a sheet, from lead edge and numbers within .01" of previous number
• Number single sheets or crash number up to a 10 part carbonless form
• Patented self-inking disposable ink cartridges: no re-inking required, (approx.) 25,000 impressions per cartridge. Ink available in red or black

Max Speed

• Compression Crease 4,500 8.5 x 11 sph
• Numbering up to 8,000 8.5 x 11 sph
• Rotary Perf/Score 12,000 8.5 x 11 sph
