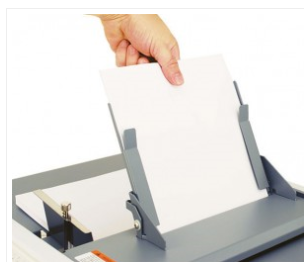

Multi-Sheet Feeder for FD346

Cabinet for FD346

V-Stack36-10 Stand for vertical stacker

FD346 Document Folder Manual Setting

Write a Review

~~Price: $3,950.00~~

Our Price: $3,555.00

Shipping:

FREE

Brand: Formax

SKU: FD346

Product Videos

Description
Reviews

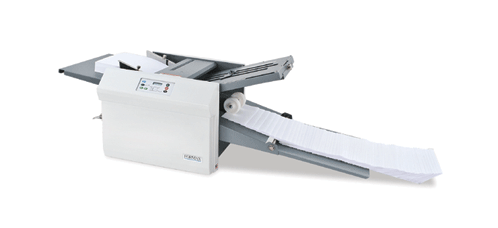

FD346 Document Folder Manual Setting

PRODUCT DESCRIPTION:

The FD346 document folder is a desktop folder that is not only fast but dependable and easy to use for virtually all folding applications. Quick set-up and operation are made easy with 6 popular folds that are clearly marked on the fold plates. Adjustments can also be made to process a variety of custom folds.

The unique telescoping output stacker and optional multi-sheet feeder give the FD346 unmatched output ability and added folding versatility.

CLICK HERE FOR BROCHURE

PRODUCT FEATURES:

Speeds up to 15,500 pieces per hour

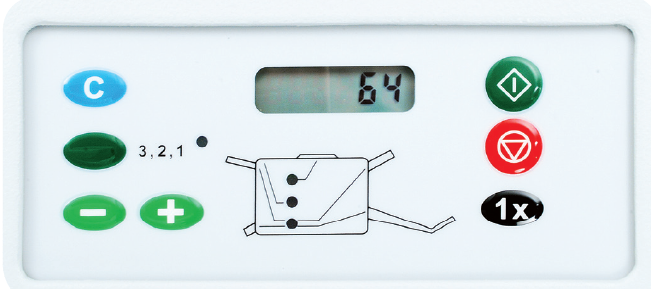

User-friendly control panel

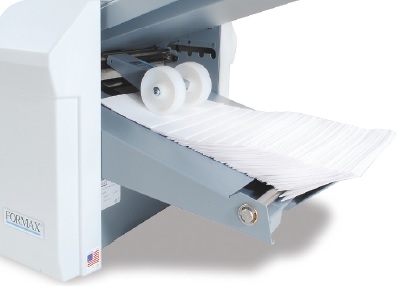

3-roller drop-in feed system
Telescoping conveyor system
Programmable Batch Counter
6-digit resettable and 8-digit life counters

PRODUCT SPECIFICATIONS:

Speed:	Up to 15,500 sheets per hour � based on 11� (279mm) Z-Fold*, 6 Settings
Hopper Capacity:	Up to 500 sheets 20# (75gsm)
Pre-Marked Folds:	C, V, Z, Gate, Fold Out and Double Parallel
Pre-Marked Paper Sizes:	FD Model: 11�, 14�, 17� FE Model: A5, A4, A3, B6, B5, B4
Paper Size:	Min: 3.5� W x 5� L (88.9 W x 127 L mm) Max: 12.25� W x 18� L (311 W x 457 L mm)
Dimensions:	Closed: 33� L x 20� W x 19� H (84 L x 51 W x 48 H cm) Fully Extended: 60� L x 20� W x 19� H (152 L x 51 W x 48 H cm)
Weight:	67 lbs (30kg)
Power:	FD Model: 110VAC 50/60 Hz FE Model: 220VAC 50/60 Hz
Option:	FD 300-20 - Multi-Sheet Feeder
Safety Certifications:	UL, CUL, and CE approved
