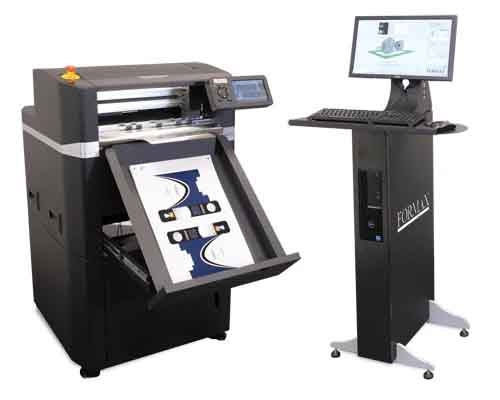

Formax Cut-True DDC50 Automatic High-Speed Digital Die Cutter

PRODUCT DESCRIPTION:

The Formax Cut-True DDC50 Automatic High-Speed Digital Die Cutter creates on-demand custom packaging, advertising displays, kiss-cut labels and more, with precision and easy setup.

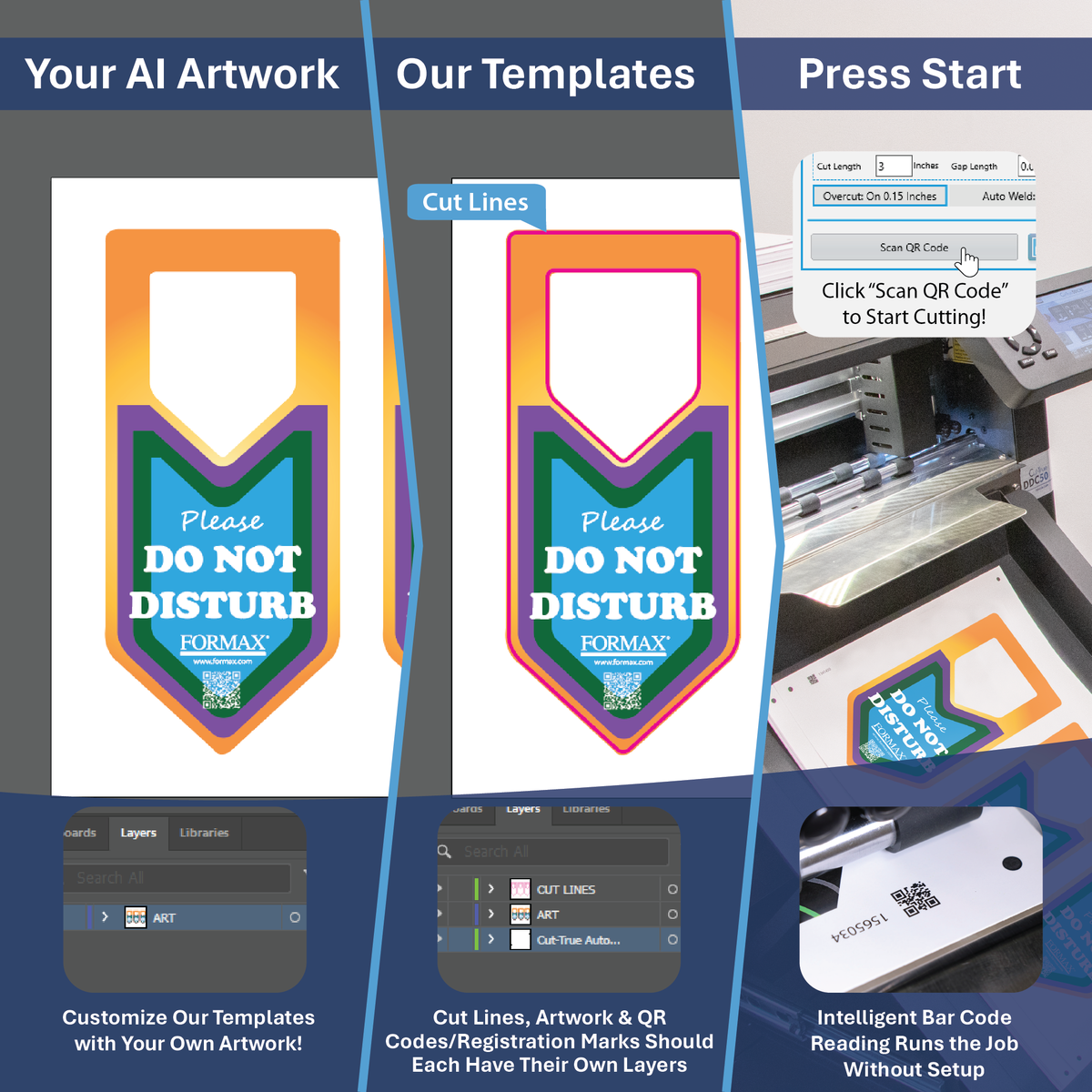

Fully automatic, it utilizes QR Code recognition to process mixed jobs in a single stack, transforming cut sheets up to 350 microns thick into virtually any shape imaginable.

Features include a dual-action cutting/creasing head, high-capacity vacuum belt feeder, Cut-True Pro Production Studio Software, touchscreen control panel, and freestanding PC workstation for enhanced versatility.

The Formax Cut-True DDC50 sets the standard for on-demand print finishing with unmatched speed and accuracy in the mid-production market.

CLICK HERE FOR BROCHURE

PRODUCT FEATURES:

• Create on-demand packaging & kiss-cut labels
• Process mixed jobs in a single stack
• QR Code recognition
• PC workstation with stand
• Cut-True Pro Production software
• Space saving media catch tray
• High capacity vacuum belt feeder

PRODUCT SPECIFICATION:

Capabilities	Die-Cut (with retention tags), Kiss-Cut, Crease, Perforate
Standard Media Size	8.5”x11”, 11”x17”, 12”x18”, 13”x19”
Media Size	Minimum: 7” x 13.4” Maximum: 13.4” x 28”
Maximum Cutting Area	13” x 27.5”
Media Thickness	.0055” - .013” (140-350 microns)
Cut/Crease Force	750gf Max 350 micron
Maximum Speed	Up to 47”/second (1,060mm/second)
Infeed Tray Capacity	Up to 3.3” high Up to 1,000 sheets 20# Bond Letter
Feeding System	Vacuum belt feeder
Weight	Cutter w/stand: 300 lbs (136kg) Workstation w/stand: 71 lbs (32kg)

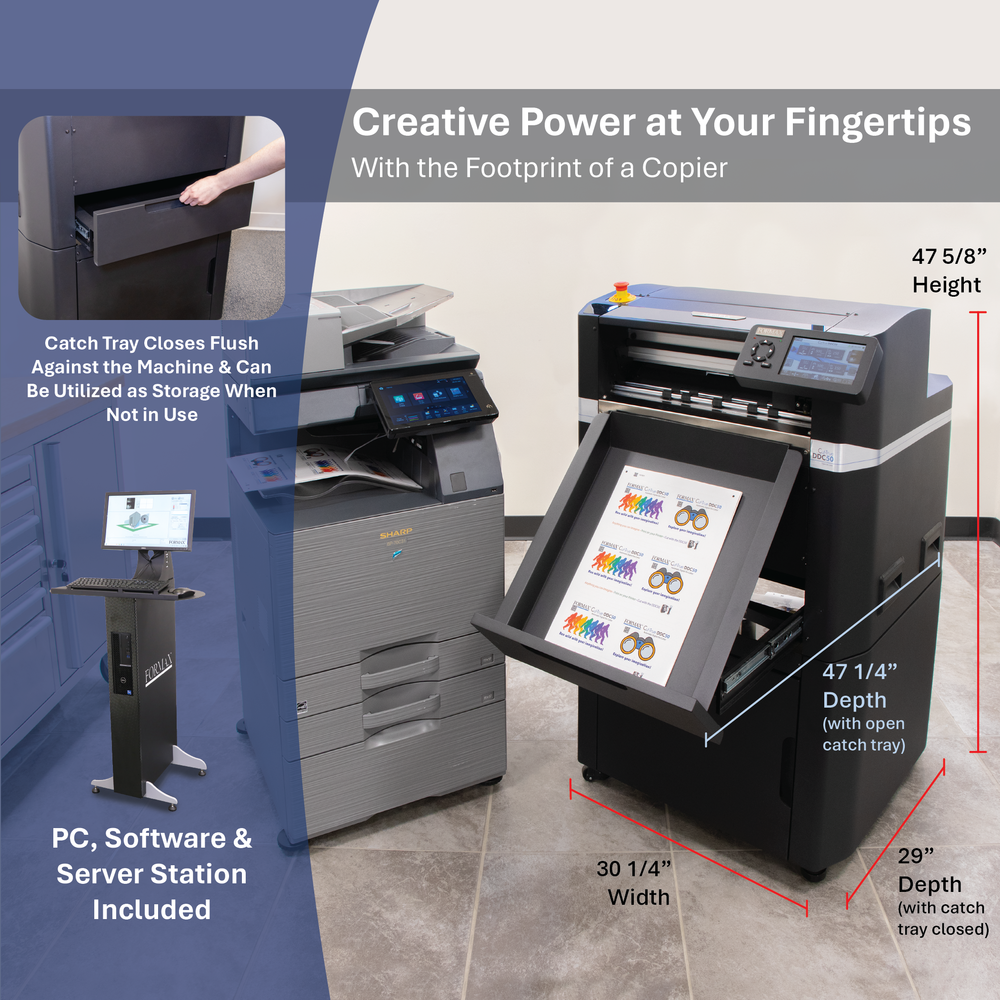

Dimensions	Cutter: 33” W x 34” D x 49” H (828 x 851 x 1230mm) Workstation: 29” W x 21” D x 56” H (737 x 533 x 1422mm)
Power Supply	100-240V 50/60Hz
Manufactured in	USA
Manufacturer	Formax
