Intimus 16.50 SmartShed

Intimus 16.50 SmartShed

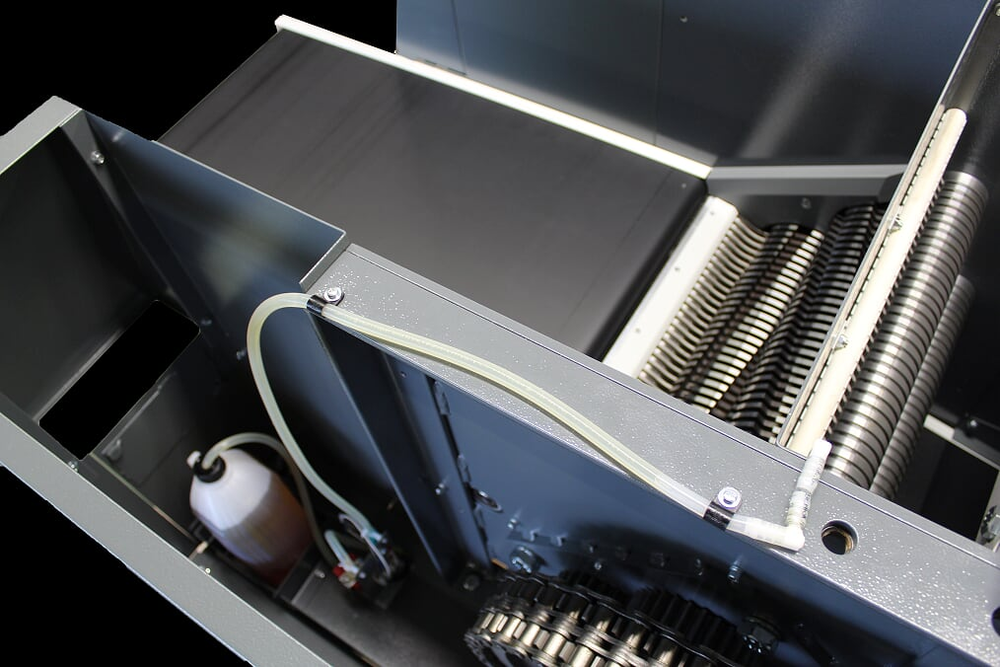

Intimus 16.50 SmartShed Oiling System

Oiling System

Intimus 16.50 SmartShed

Price: Call for Low Price!


Brand: Intimus

SKU: 16.50


Product Videos

NEW!

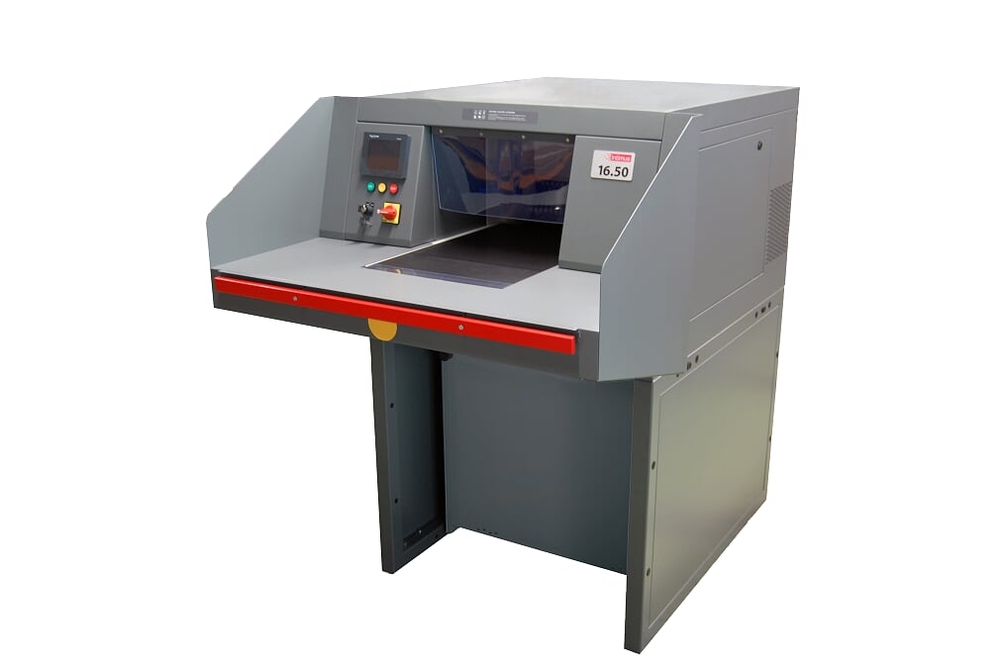

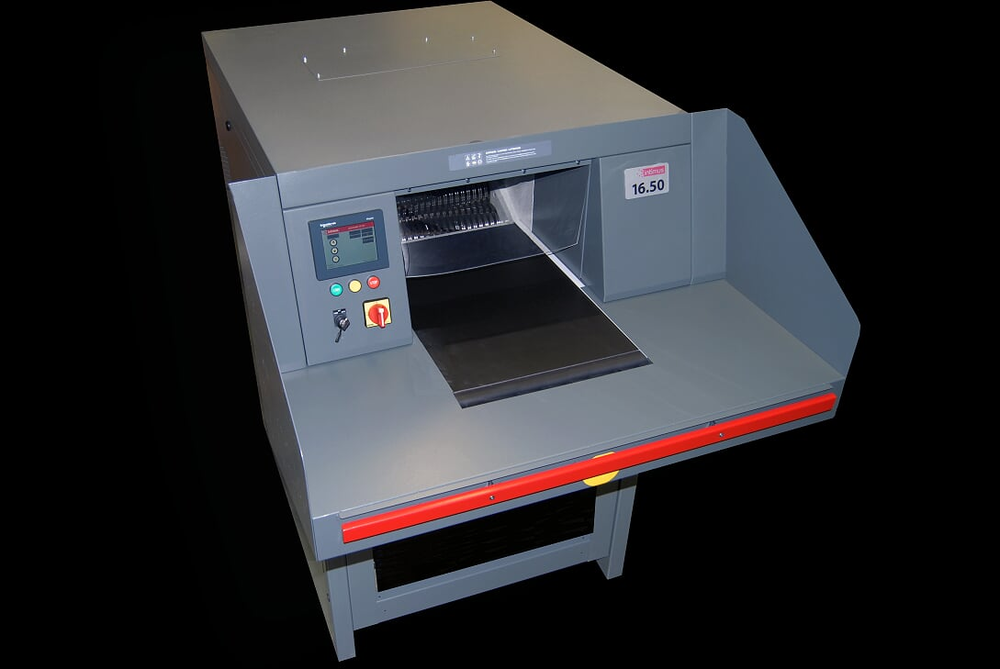

Introducing the Intimus 16.50 SmartShed Heavy Duty Shredder Solo Version.

PRODUCT DESCRIPTION:

The Intimus 16.50 SmartShed is the newest high-performance large document shredder from Intimus. This line of shredders has proven to be central pieces for private-friendly disposal of disused media. The model offers variations handling up to 550 sheets per hour or complete folders in one operation. The 16.50 is equipped with a spacious feed table and infeed conveyor belt to provide controlled, effortless, safe, and fast loading. The shredded material is then collected in a large-scale container beneath the machine, either mobile or swing-out.


CLICK HERE FOR BROCHURE


PRODUCT FEATURES:

  • 500 MM WORKING WIDTH; SUITABLE FOR ALL STANDARD COMPUTER FORMATS
  • FEEDING VIA CONVEYOR BELT
  • CONVEYOR REMOVED FROM OPERATOR SIDE
  • SHREDDER CAN BE INSTALLED NEXT TO A WALL
  • AUDIBLE "BIN FULL" ALARM WITH AUTOMATIC STOP OF SHREDDING
  • WIDE EMERGENCY STOP BAR ON RECEIVING TABLE FOR IMMEDIATE STOP IN AN EMERGENCY
  • 450 l COLLECTING BIN SUPPLIED AS STANDARD EQUIPMENT

PLC CONTROL:

  • MORE INFORMATION
  • EXACT ERROR DISPLAY
  • DISPLAY WHEN SERVICE WOULD BE BENEFICIAL
  • USEFUL INFORMATION SUCH AS OPERATING HOURS OR BLOCKING NOTIFICATION
  • ALL POSSIBLE ACCESSORIES ARE SAVED IN THE SOFTWARE AND ONLY NEED TO BE ACTIVATED
  • VIA AN USB-STICK OR A SD CARD THE CUSTOMER CAN CHANGE THE SOFTWARE OF THE PLC
  • DISPLAY CAN BE ADJUSTED TO CUSTOMER REQUIREMENTS

PRODUCT SPECIFICATIONS:

  • SHRED SIZE: 0.39’’ x 2.76’’ (10 x 70 mm)
  • BIN VOLUME: 118.9 gal / 88.2-121.3 lbs(450 l / 40-55 kg)
  • WORKING WIDTH: 50+ persons
  • SECURITY LEVEL DIN 66399: P-2/ O-2 / T-2 / E-2
  • SHREDDING CAPACITY: 470-520 sheets 70 g/m²400-450 sheets 80 g/m2
  • CUTTING SPEED: 78.7 ft/s (0,24 m/sec)
  • THROUGHTPUT: 1212.5 - 1322.8 lbs/h(550-600 kg/h)
  • NOISE LEVEL: 61dB
  • ALSO SHREDS: paperclips, CD's, credit cards, compact discs, and binders
  • WEIGHT: 1600.6 lbs (726 kg)
  • DIMENSIONS (WxDxH): 120 x 195 x 155 cm

Specifications for Intimus 16.50 SmartShed
Power Supply: 220 3 phase
Max Speed (ft/min): 27ft/min
Sheet Capacity (20lb - 16lb): 470-520 sheets 70g/m^2; 400-450 sheets 80g/m^2
Shred Size (in.): 0.39’’ x 2.76’’ (10 x 70 mm)
Throat Opening (in.): 19.685
HP (output): 10
Auto on/off: Yes
Auto Reverse: Yes
Motor Duty Cycle: Continuous
Bag Full Auto Off: Yes
Bag Full Indicator: Yes
Casters: No
Accepts CDs/Credit Cards: Yes
Accepts Staples/Paper Clips: Yes
Shipping Weight: 1600.6 lbs (726 kg)
Dimensions: 47.2’’ x 76.8’’ x 61’’ 120 x 195 x 155 cm
Waste Bin: 118.9 gal / 88.2-121.3 lbs (450 l / 40-55 kg)
