NEW!

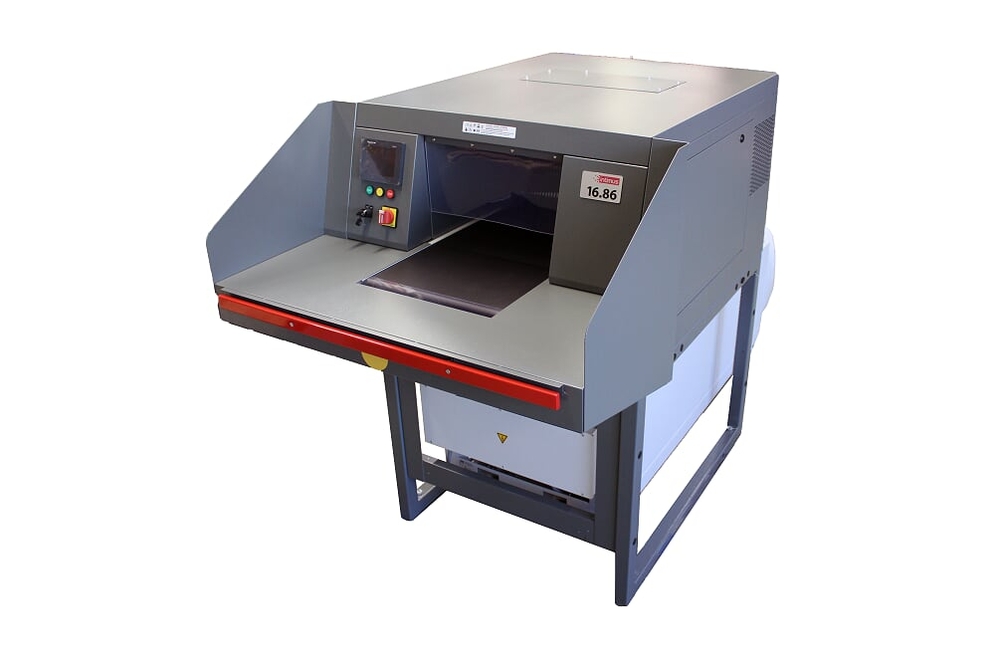

Introducing the Intimus 16.86 SmartShed Heavy Duty Shredder Baler Combination.

PRODUCT DESCRIPTION:

The Intimus 16.86 SmartShed is the newest high-performance large document shredder from Intimus. This line of shredders has proven to be central pieces for private-friendly disposal of disused media. The model offers variations handling up to 550 sheets per hour or complete folders in one operation. The 16.86 is equipped with a spacious feed table and infeed conveyor belt to provide controlled, effortless, safe, and fast loading. The shredded material is then collected in a large-scale container beneath the machine, either mobile or swing-out.

CLICK HERE FOR BROCHURE

PRODUCT FEATURES:

• 500 MM WORKING WIDTH; SUITABLE FOR ALL STANDARD COMPUTER FORMATS
• FEEDING VIA CONVEYOR BELT
• CONVEYOR REMOVED FROM OPERATOR SIDE
• SHREDDER CAN BE INSTALLED NEXT TO A WALL
• AUDIBLE "BIN FULL" ALARM WITH AUTOMATIC STOP OF SHREDDING
• WIDE EMERGENCY STOP BAR ON RECEIVING TABLE FOR IMMEDIATE STOP IN AN EMERGENCY
• 450 l COLLECTING BIN SUPPLIED AS STANDARD EQUIPMENT
• ELECTRONIC COMPACTING CHAMBER LEVEL MONITORING
• SHREDDER LOADING CAN BE CONTINUED WHILE BALER IS COMPRESSING MATERIAL
• PUSH BUTTON CONTROL FOR BALE EJECTION
• ALTERNATIVE OF BALE EJECTION INTO PLASTIC FORVCLEAN, DUST-FREE TRANSPORT, AND WEATHERPROOF PACKAGING
• SHREDDER AND BALER OPERATE IN TANDEM
• AUDIBLE "BALE COMPLETED" SIGNAL AND ACCOMPANYING THE CUTTING PROCESS IS HALTED

PLC CONTROL:

• MORE INFORMATION
• EXACT ERROR DISPLAY
• DISPLAY WHEN SERVICE WOULD BE BENEFICIAL
• USEFUL INFORMATION SUCH AS OPERATING HOURS OR BLOCKING NOTIFICATION
• ALL POSSIBLE ACCESSORIES ARE SAVED IN THE SOFTWARE AND ONLY NEED TO BE ACTIVATED
• VIA AN USB-STICK OR A SD CARD THE CUSTOMER CAN CHANGE THE SOFTWARE OF THE PLC
• DISPLAY CAN BE ADJUSTED TO CUSTOMER REQUIREMENTS
• FURTHER SUPPLY, LIKE THE FEED CONVEYOR, IS PREPARED FROM POINT OF HARDWARE

PRODUCT SPECIFICATIONS:

AVAILABLE IN 2 CUT SIZES. 10x70 mm // 6x50 mm

• SHRED SIZE: 0.39’’ x 2.76’’ (10 x 70 mm) // 0.24’’ x 1.97’’ (6 x 50 mm)
• WORKING WIDTH: 50+ persons
• SECURITY LEVEL DIN 66399: P-2/ O-2 / T-2 / E-2 // P-3/ O-3 / T-3 / E-2
• SHREDDING CAPACITY: 470-520 sheets 70 g/m^2 400-450 sheets 80 g/m^2 // 300-330 sheets 70 g/m^2 260-290 sheets 80 g/m^2
• CUTTING SPEED: 78.7 ft/s (0.24 m/sec)
• THROUGHTPUT: 1212.5 lbs/h // 1058.2 lbs/h
• NOISE LEVEL: 61dB
• ALSO SHREDS: paperclips, CD's, credit cards, compact discs // paperclips, CD's, credit cards, compact discs, and binders
• WEIGHT: 2769 lbs (1.256 kg)
• DIMENSIONS (WxDxH): 111.4’’/134.6’’x47.2”x61’’
