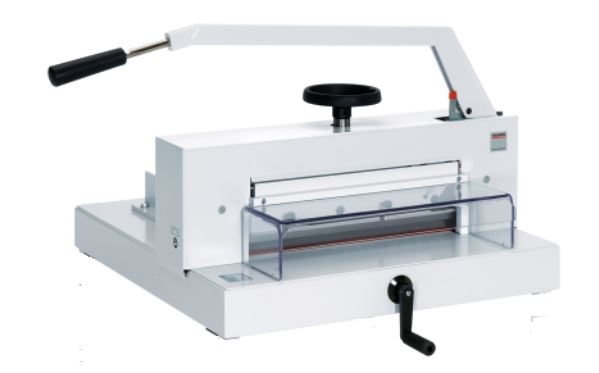

TRIUMPH Model 4705 Paper Cutter

PRODUCT DESCRIPTION:

The MBM Triumph 4705 is a 18" manual tabletop cutter that has a precision measuring scale on front table, precision-ground guide plates and solid-steel blade carrier. The 4705 paper cutter also has a transparent safety guard on the front and back table. Blade changes and cutting stick rotation can be done without removing covers. The spindle clamping system on the Triumph 4705 applies even pressure along the entire cutting width.

Tabletop model (stand optional)

BROCHURE

PRODUCT FEATURES:

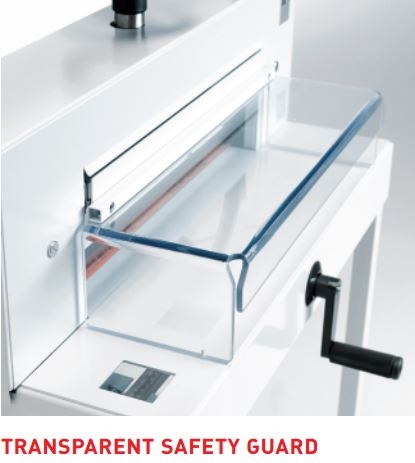

• Hinged, transparent safety guard on front table (locks automatically while cutting)
• Transparent safety cover on rear table
• Safety catch (locks blade lever in up position)
• Blade changing device covers cutting edge of blade
• Blade depth adjustment from outside of machine

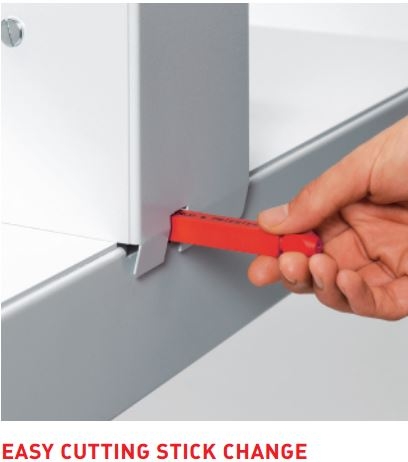

• Blade and cutting stick can be changed without removing covers
• Manual tabletop cutter with an 18 3/4-inch cutting width and fast-action clamp

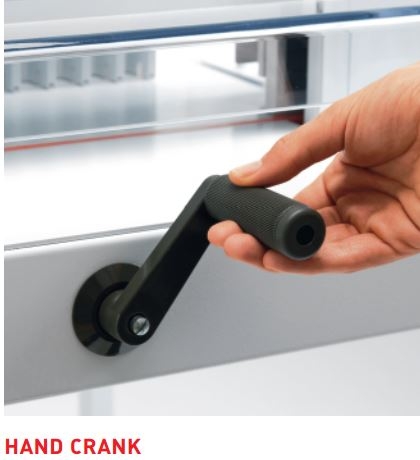

• Spindle-guided back gauge with calibrated crank

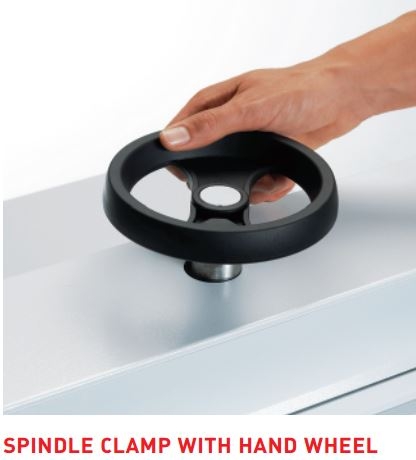

• Manual spindle clamp is guided on both sides to apply even pressure along entire cutting width
• Front table measurement scale (mm / inches)
• High quality, German steel blade
• Solid steel blade carrier and adjustable blade guides
• All-metal construction

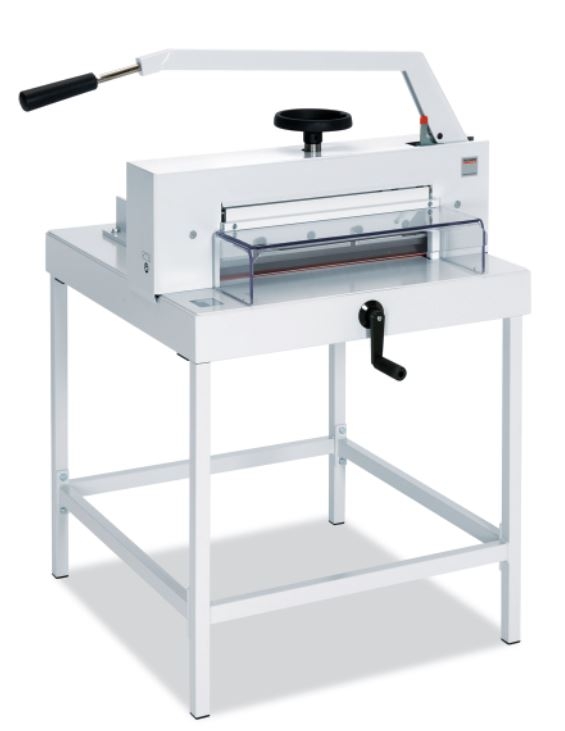

• Optional stand (shown above)
• UL and C UL approved

PRODUCT SPECIFICATIONS:

• Cutting Width: 18 3/4"
• Cutting Height: 2 3/4"
• Length Behind Blade: 18"
• Narrow Cut: 1 3/16"
• Clamp Type: Spindle
• Blade Material: German steel
• Dimensions (D x W x H): 35" x 39" x 23" (51 W and 50 H with stand)
• Shipping Weight: 297 lbs. (320 with stand)
